Material use
Use this ready-to-process compound directly, or blend it with compatible virgin PE in any proportion to adjust the fiber concentration and molded appearance. Run a molding trial after changing the blend ratio.
Wheat Straw Fiber PE Composite
WYC-PE P179WT020

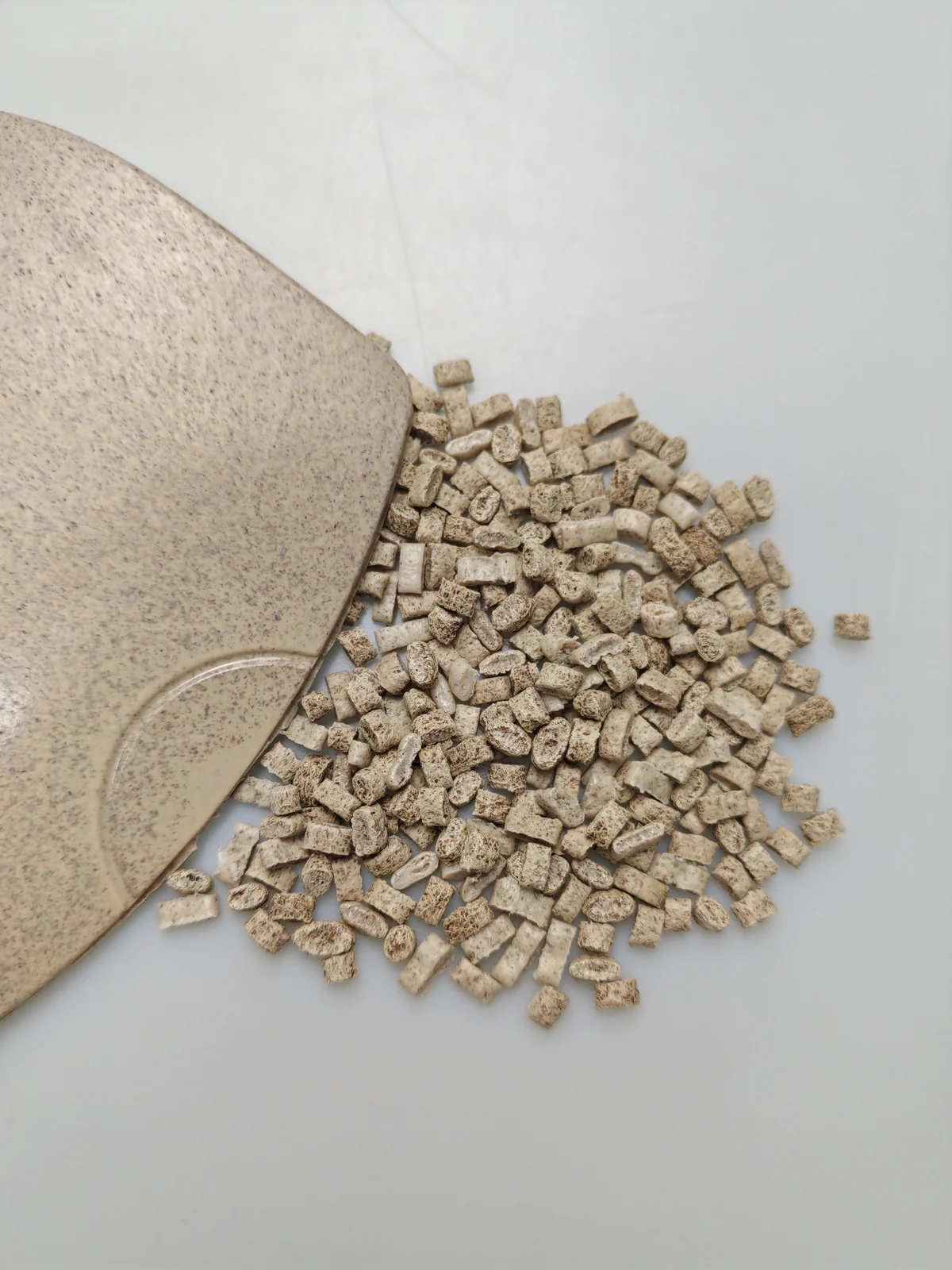

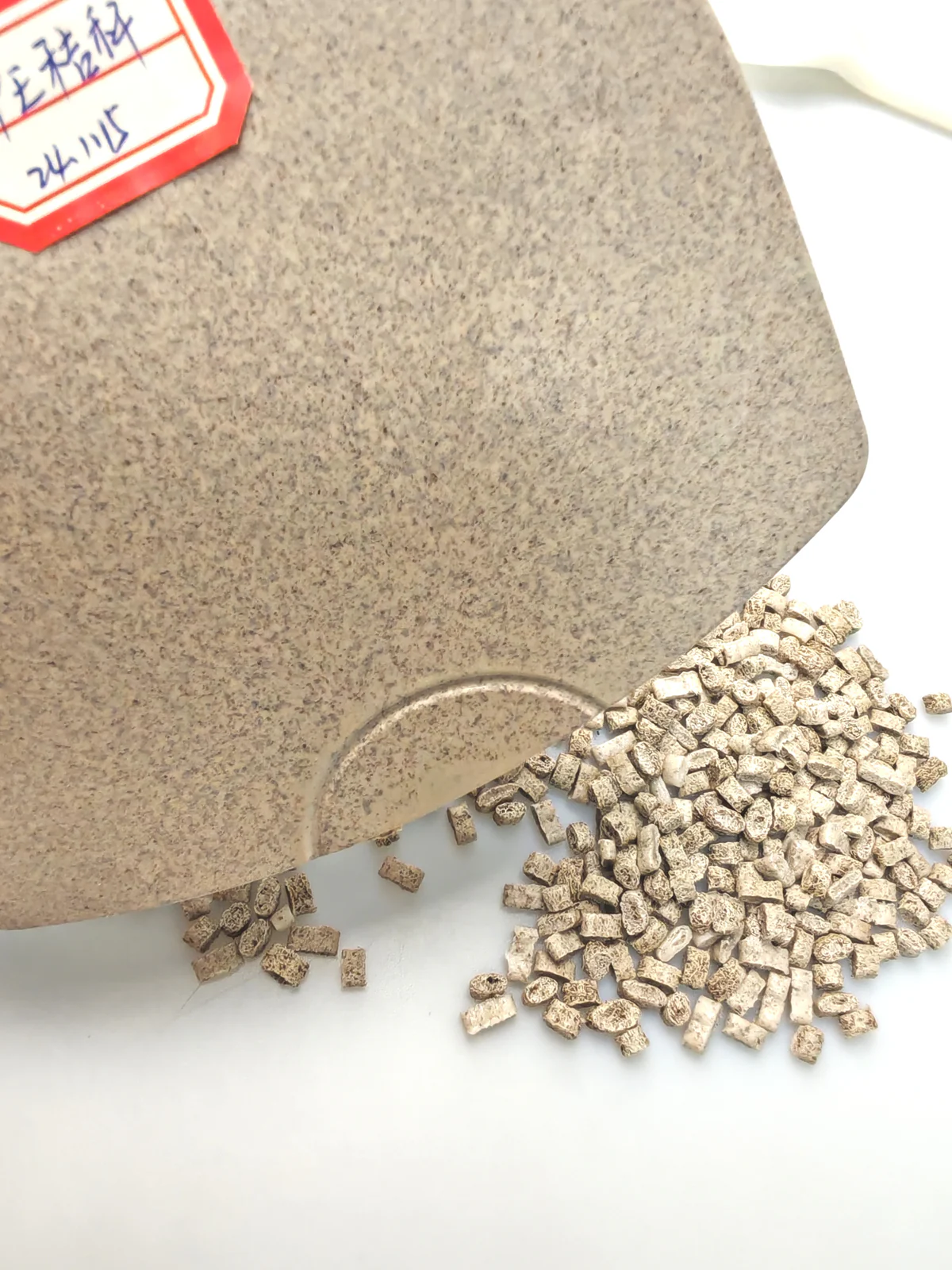

Wheat Straw Fiber PE combines polyethylene with processed dry wheat stems, creating a pale beige material with visible straw particles and gentle natural color variation. The polyethylene base gives molded parts a less brittle, more yielding feel than rigid PP- or ABS-based fiber compounds, while the straw adds a dry, agricultural texture. Finished surfaces appear warm and lightly speckled rather than uniformly plastic. Suitable applications include flexible household parts, protective covers, storage accessories, caps, pet products and softly contoured molded components.
Reference Price2.5 USD / KG
View COAFor this material, we use wheat straw as the plant source.
Physical and mechanical properties
- Density
- 1.04 g/cm³
- ISO 1183
- Tensile strength
- 24 MPa50 mm/min
- ISO 527-2
- Elongation at break
- 8.0 %50 mm/min
- ISO 527-2
- Flexural strength
- 37 MPa10 mm/min
- ISO 178
- Flexural modulus
- 1,050 MPa10 mm/min
- ISO 178
- Notched Izod impact strength
- 16 kJ/m²23 °C
- ISO 180/1U
- Shore hardness
- 65 HD
- ISO 868
Usage Guidelines and Processing Notes
Color matching
Color matching is supported. Because the natural base is light, most color families can be developed, although the plant particles remain visible and may shift the final shade. Confirm the target with a molded color sample.
Processing method
Injection molding.
Mold care
Use hardened, corrosion-resistant mold steel. Clean the mold promptly after processing, because plant-fiber composite material left in the tooling can corrode the mold if it is not removed in time.
Reference Processing Temperatures
| Stage | Reference setting |
|---|---|
| Drying | 100–110 °C for 3–4 h |
| Rear zone | 165–170 °C |
| Middle zone | 170–175 °C |
| Front zone | 170–180 °C |
| Nozzle | 170–190 °C |
| Mold | Set to mold and part requirements |
Important: These settings are starting references only. Adjust them for the machine, mold, part geometry and residence time. Excessive temperature or residence time can scorch or carbonize the plant fiber; begin at the lower end and increase only as needed.
Supported Certificates
Material Safety Data Sheet
Material safety documentation can be provided for product handling and project review.
RoHS
RoHS compliance documentation can be supported according to the applicable grade and production batch.
The images above are cropped reference excerpts. Document contents, report numbers and test details vary by material grade and production batch.
Material Consultation
Discuss this material with our team
Share your product, process, color and performance requirements. We can help review the grade, fiber content and sample-trial route.
