Material use
Use this ready-to-process compound directly, or blend it with compatible virgin ABS in any proportion to adjust the fiber concentration and molded appearance. Run a molding trial after changing the blend ratio.
Cereal Fiber ABS Composite
WYC-ABS PA7577015

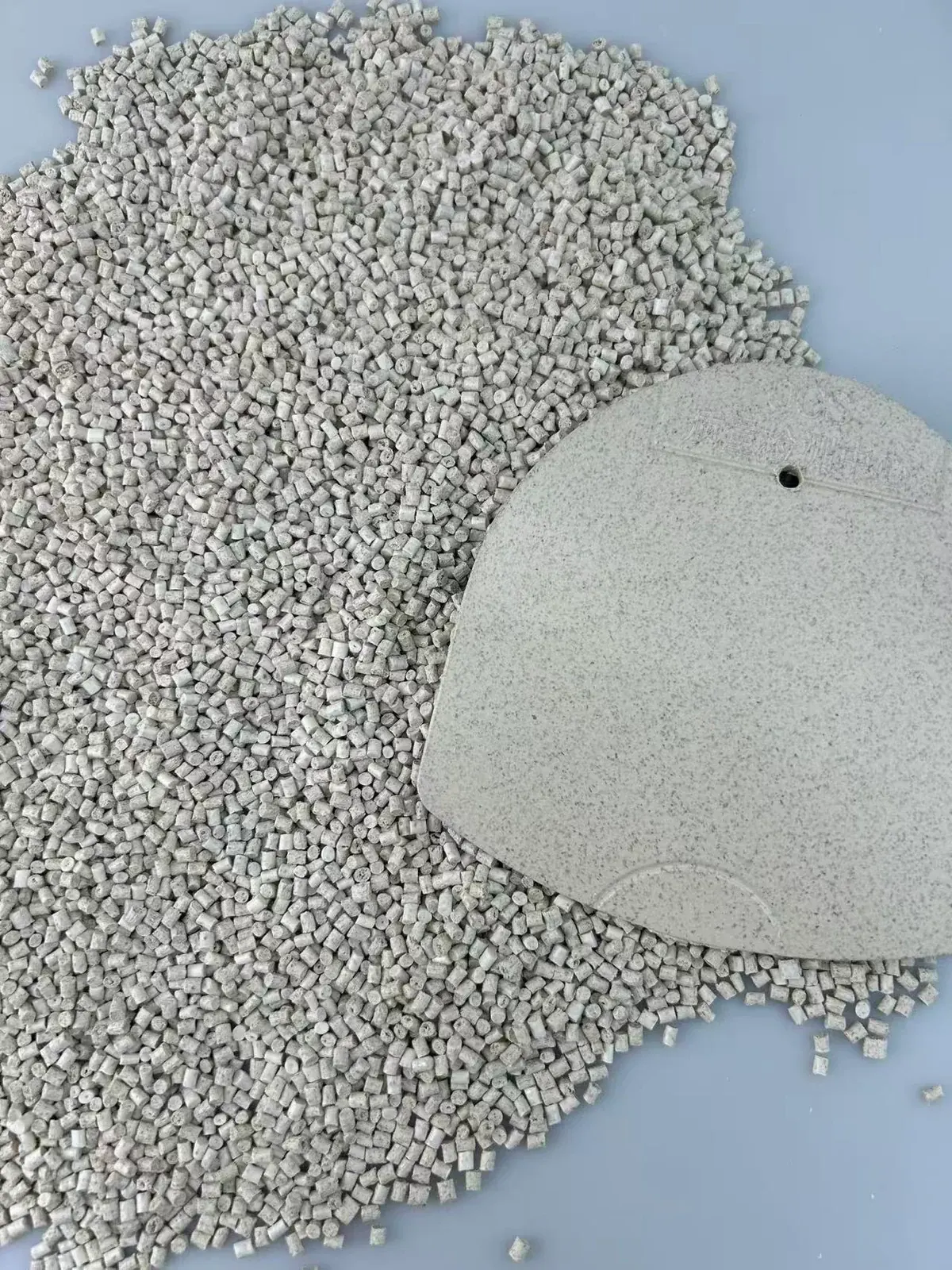

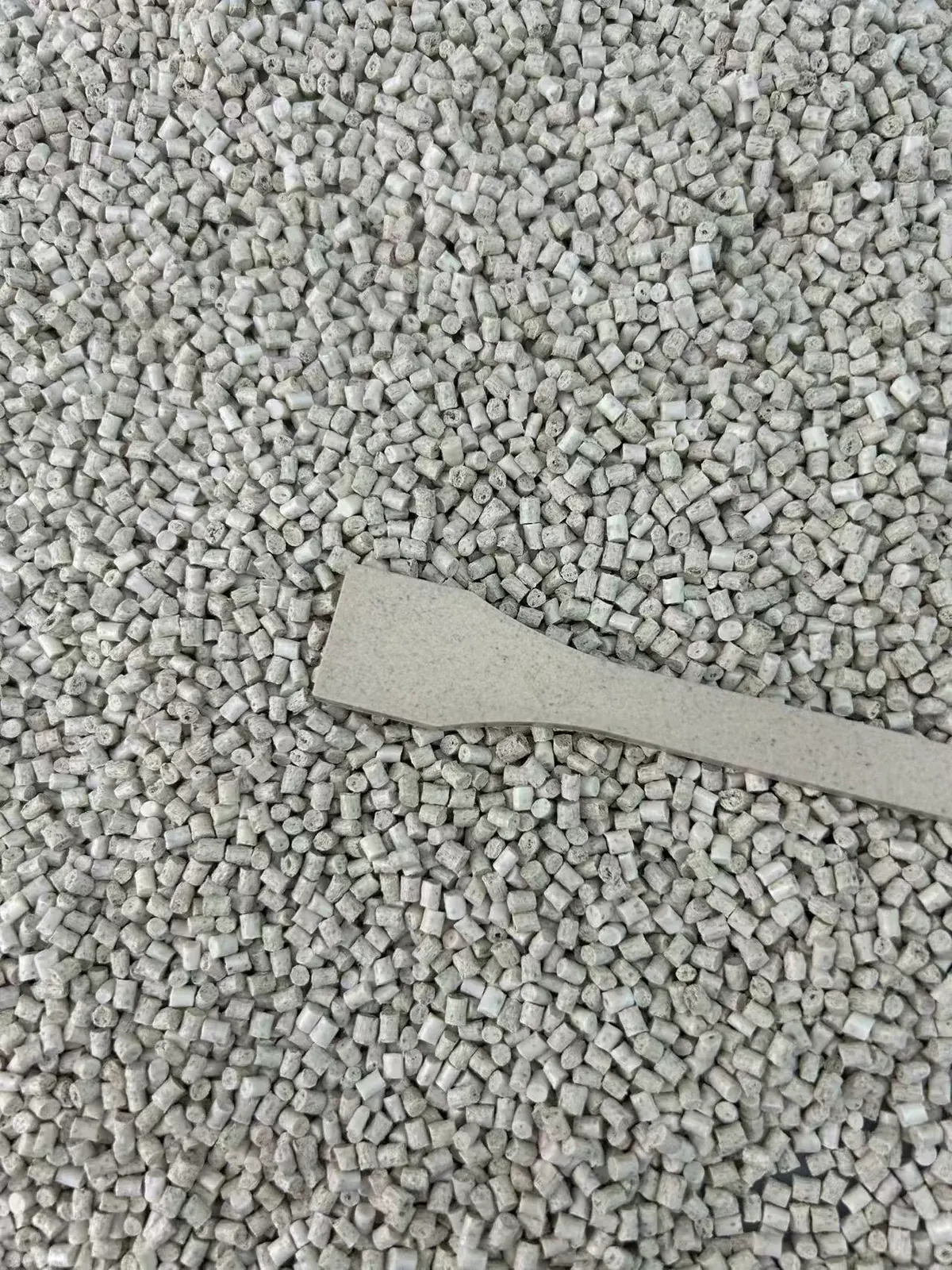

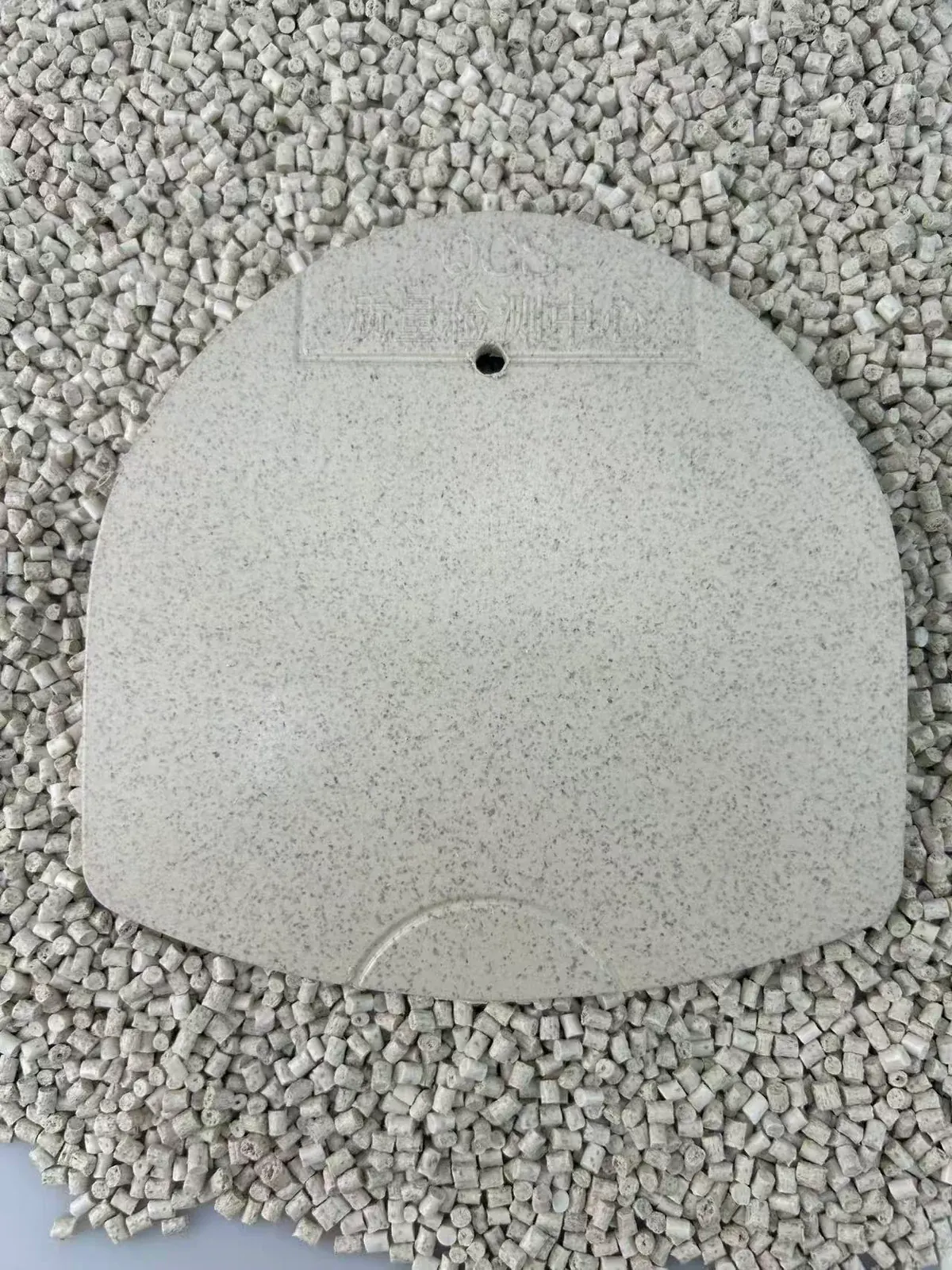

Cereal Fiber ABS blends ABS with processed fiber from cereal stem straw, creating a light gray-beige material with fine, evenly distributed plant particles. The straw gives the surface a restrained grain pattern, while the ABS base supports rigid parts with defined edges and a solid hand feel. Molded products retain a technical appearance but gain more visual depth than plain plastic. Suitable applications include electronic accessory housings, desk organizers, storage trays, control knobs and decorative interior panels.
Reference Price3.2 USD / KG
View COAFor this material, we use cereal straw as the plant source.
Physical and mechanical properties
- Density
- 1.10 g/cm³
- ASTM D792
- Tensile strength
- 37 MPa50 mm/min
- ASTM D638
- Elongation at break
- 2.5 %50 mm/min
- ASTM D638
- Flexural strength
- 66 MPa10 mm/min
- ASTM D790
- Flexural modulus
- 1,508 MPa10 mm/min
- ASTM D790
- Notched Izod impact strength
- 7.0 kJ/m²23 °C
- ASTM D256
- Shore hardness
- 76.5 HD
- ASTM D2240
Usage Guidelines and Processing Notes
Color matching
Color matching is supported. Because the natural base is light, most color families can be developed, although the plant particles remain visible and may shift the final shade. Confirm the target with a molded color sample.
Processing method
Injection molding.
Mold care
Use hardened, corrosion-resistant mold steel. Clean the mold promptly after processing, because plant-fiber composite material left in the tooling can corrode the mold if it is not removed in time.
Reference Processing Temperatures
| Stage | Reference setting |
|---|---|
| Drying | 80–90 °C for 4–5 h |
| Rear zone | 165–175 °C |
| Middle zone | 175–180 °C |
| Front zone | 180–200 °C |
| Nozzle | 180–200 °C |
| Mold | 60–90 °C |
Important: These settings are starting references only. Adjust them for the machine, mold, part geometry and residence time. Excessive temperature or residence time can scorch or carbonize the plant fiber; begin at the lower end and increase only as needed.
Supported Certificates
Material Safety Data Sheet
Material safety documentation can be provided for product handling and project review.
RoHS
RoHS compliance documentation can be supported according to the applicable grade and production batch.
The images above are cropped reference excerpts. Document contents, report numbers and test details vary by material grade and production batch.
Material Consultation
Discuss this material with our team
Share your product, process, color and performance requirements. We can help review the grade, fiber content and sample-trial route.
