Material use
Use this ready-to-process compound directly, or blend it with pure PP in any proportion to adjust the fiber concentration and molded appearance. Run a molding trial after changing the blend ratio.
Wood Fiber PP Composite P179302
WYC-PP P179302

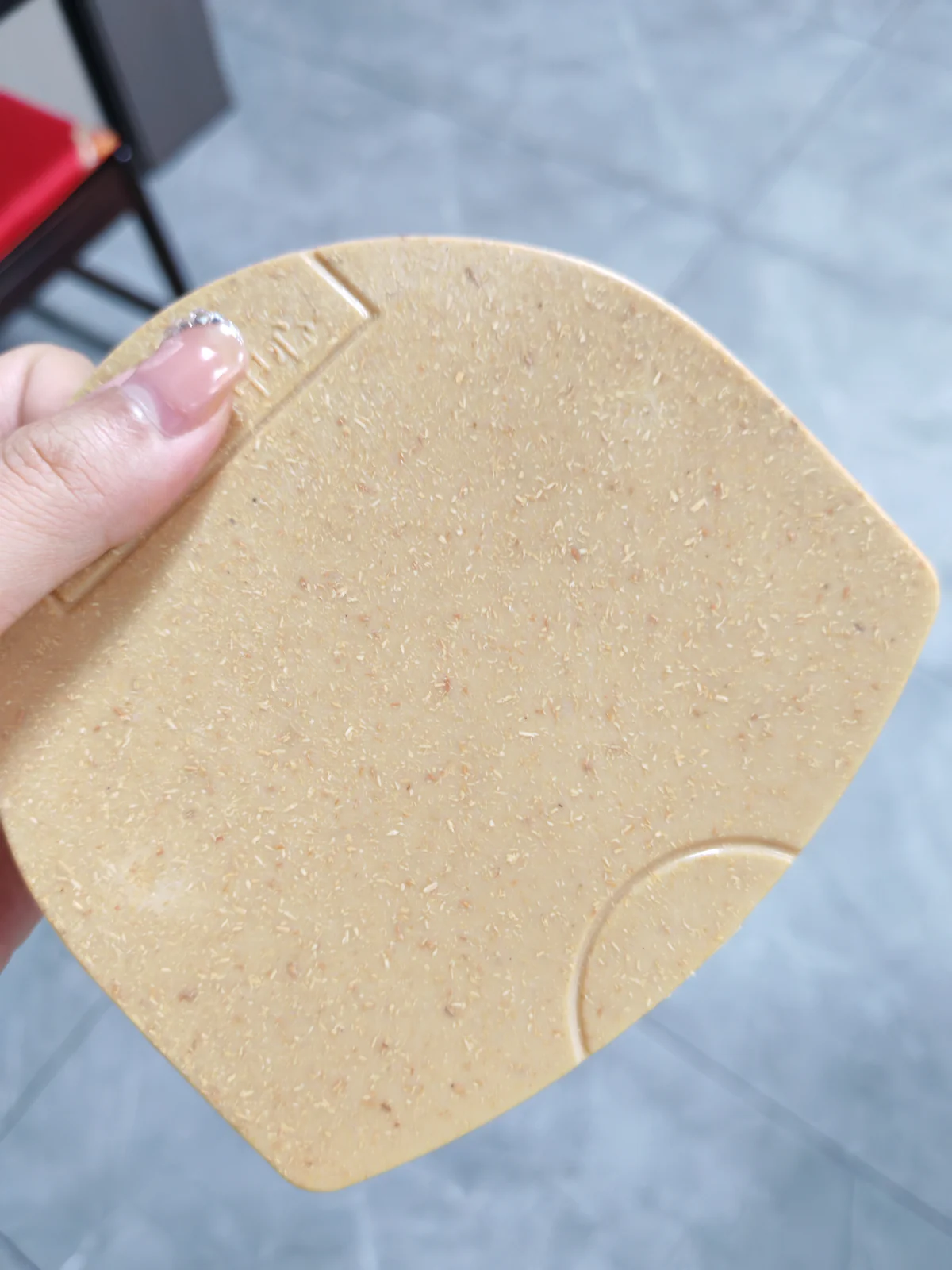

Wood Fiber PP P179302 combines polypropylene with natural wood fiber, giving molded parts visible wood particles, subtle natural color variation and a distinctive wood-like appearance. The material can also retain a mild natural wood aroma, helping finished products feel less like conventional plastic. It maintains the practical toughness and formability required for everyday injection-molded products while adding a recognizable natural-material character. Typical applications include pet accessories, clothes hangers, storage products, household items and decorative molded parts.
Reference Price2.5 USD / KG
View COAFor this material, we use wood as the plant source.
Physical and mechanical properties
- Density
- 1.11 g/cm³
- ASTM D792
- Tensile strength
- 32 MPa50 mm/min
- ASTM D638
- Elongation at break
- 5.0 %50 mm/min
- ASTM D638
- Flexural strength
- 47 MPa10 mm/min
- ASTM D790
- Flexural modulus
- 2,210 MPa10 mm/min
- ASTM D790
- Notched Izod impact strength
- 4.5 kJ/m²23 °C
- ASTM D256
- Shore hardness
- 73 HD
- ASTM D2240
Usage Guidelines and Processing Notes
Color matching
Color matching is supported. Because the natural base is light, most color families can be developed, although the plant particles remain visible and may shift the final shade. Confirm the target with a molded color sample.
Processing method
Injection molding and extrusion.
Mold care
Use hardened, corrosion-resistant mold steel. Clean the mold promptly after processing, because plant-fiber composite material left in the tooling can corrode the mold if it is not removed in time.
Reference Processing Temperatures
| Stage | Reference setting |
|---|---|
| Drying | 100–110 °C for 4–5 h |
| Rear zone | 165–175 °C |
| Middle zone | 165–175 °C |
| Front zone | 175–185 °C |
| Nozzle | 175–185 °C |
| Mold | 70–80 °C |
Important: These settings are starting references only. Adjust them for the machine, mold, part geometry and residence time. Excessive temperature or residence time can scorch or carbonize the plant fiber; begin at the lower end and increase only as needed.
Supported Certificates
Material Safety Data Sheet
Material safety documentation can be provided for product handling and project review.
RoHS
RoHS compliance documentation can be supported according to the applicable grade and production batch.
The images above are cropped reference excerpts. Document contents, report numbers and test details vary by material grade and production batch.
Material Consultation
Discuss this material with our team
Share your product, process, color and performance requirements. We can help review the grade, fiber content and sample-trial route.
